N-D Vertex-centered scalar grid structure. More...

#include <Core/Grid/VertexCenteredScalarGrid.hpp>

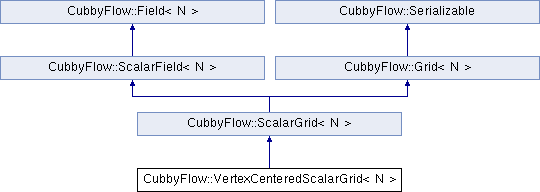

Inheritance diagram for CubbyFlow::VertexCenteredScalarGrid< N >:

Classes
class	Builder
	Front-end to create VertexCenteredScalarGrid objects step by step. More...

Public Member Functions
	VertexCenteredScalarGrid ()=default
	Constructs zero-sized grid.

	VertexCenteredScalarGrid (const Vector< size_t, N > &resolution, const Vector< double, N > &gridSpacing=Vector< double, N >::MakeConstant(1), const Vector< double, N > &origin=Vector< double, N >{}, double initialValue=0.0)

	~VertexCenteredScalarGrid () override=default
	Default virtual destructor.

	VertexCenteredScalarGrid (const VertexCenteredScalarGrid &other)
	Copy constructor.

	VertexCenteredScalarGrid (VertexCenteredScalarGrid &&other) noexcept
	Move constructor.

VertexCenteredScalarGrid< N > &	operator= (const VertexCenteredScalarGrid &other)
	Copy assignment operator.

VertexCenteredScalarGrid< N > &	operator= (VertexCenteredScalarGrid &&other) noexcept
	Move assignment operator.

Vector< size_t, N >	DataSize () const override
	Returns the actual data point size.

Vector< double, N >	DataOrigin () const override

std::shared_ptr< ScalarGrid< N > >	Clone () const override
	Returns the copy of the grid instance.

void	Swap (Grid< N > *other) override
	Swaps the contents with the given `other` grid.

void	Set (const VertexCenteredScalarGrid< N > &other)
	Sets the contents with the given `other` grid.

Public Member Functions inherited from CubbyFlow::ScalarGrid< N >
	ScalarGrid ()
	Constructs an empty grid.

	~ScalarGrid () override=default
	Default virtual destructor.

	ScalarGrid (const ScalarGrid &other)
	Copy constructor.

	ScalarGrid (ScalarGrid &&other) noexcept
	Move constructor.

ScalarGrid &	operator= (const ScalarGrid &other)
	Copy assignment operator.

ScalarGrid &	operator= (ScalarGrid &&other) noexcept
	Move assignment operator.

void	Clear ()
	Clears the contents of the grid.

void	Resize (const Vector< size_t, N > &resolution, const Vector< double, N > &gridSpacing=Vector< double, N >::MakeConstant(1), const Vector< double, N > &origin=Vector< double, N >{}, double initialValue=0.0)
	Resizes the grid using given parameters.

void	Resize (const Vector< double, N > &gridSpacing, const Vector< double, N > &origin)
	Resizes the grid using given parameters.

const double &	operator() (const Vector< size_t, N > &idx) const
	Returns the grid data at given data point.

double &	operator() (const Vector< size_t, N > &idx)
	Returns the grid data at given data point.

template<typename... Indices>
const double &	operator() (size_t i, Indices... indices) const
	Returns the grid data at given data point.

template<typename... Indices>
double &	operator() (size_t i, Indices... indices)
	Returns the grid data at given data point.

Vector< double, N >	GradientAtDataPoint (const Vector< size_t, N > &idx) const
	Returns the gradient vector at given data point.

template<typename... Indices>
Vector< double, N >	GradientAtDataPoint (size_t i, Indices... indices) const
	Returns the gradient vector at given data point.

double	LaplacianAtDataPoint (const Vector< size_t, N > &idx) const
	Returns the Laplacian at given data point.

template<typename... Indices>
double	LaplacianAtDataPoint (size_t i, Indices... indices) const
	Returns the Laplacian at given data point.

ScalarDataView	DataView ()
	Returns the read-write data array accessor.

ConstScalarDataView	DataView () const
	Returns the read-only data array accessor.

GridDataPositionFunc< N >	DataPosition () const
	Returns the function that maps data point to its position.

void	Fill (double value, ExecutionPolicy policy=ExecutionPolicy::Parallel)
	Fills the grid with given value.

void	Fill (const std::function< double(const Vector< double, N > &)> &func, ExecutionPolicy policy=ExecutionPolicy::Parallel)
	Fills the grid with given position-to-value mapping function.

void	ForEachDataPointIndex (const std::function< void(const Vector< size_t, N > &)> &func) const
	Invokes the given function `func` for each data point.

template<size_t M = N>
std::enable_if_t< M==2, void >	ForEachDataPointIndex (const std::function< void(size_t, size_t)> &func) const

template<size_t M = N>
std::enable_if_t< M==3, void >	ForEachDataPointIndex (const std::function< void(size_t, size_t, size_t)> &func) const

void	ParallelForEachDataPointIndex (const std::function< void(const Vector< size_t, N > &)> &func) const
	Invokes the given function `func` for each data point in parallel.

template<size_t M = N>
std::enable_if_t< M==2, void >	ParallelForEachDataPointIndex (const std::function< void(size_t, size_t)> &func) const

template<size_t M = N>
std::enable_if_t< M==3, void >	ParallelForEachDataPointIndex (const std::function< void(size_t, size_t, size_t)> &func) const

double	Sample (const Vector< double, N > &x) const override
	Returns the sampled value at given position `x`.

std::function< double(const Vector< double, N > &)>	Sampler () const override
	Returns the sampler function.

Vector< double, N >	Gradient (const Vector< double, N > &x) const override
	Returns the gradient vector at given position `x`.

double	Laplacian (const Vector< double, N > &x) const override
	Returns the Laplacian at given position `x`.

void	Serialize (std::vector< uint8_t > *buffer) const override
	Serializes the grid instance to the output buffer.

void	Deserialize (const std::vector< uint8_t > &buffer) override
	Deserializes the input buffer to the grid instance.

Public Member Functions inherited from CubbyFlow::ScalarField< N >
	ScalarField ()=default
	Default constructor.

	~ScalarField () override=default
	Default destructor.

	ScalarField (const ScalarField &)=default
	Default copy constructor.

	ScalarField (ScalarField &&) noexcept=default
	Default move constructor.

ScalarField &	operator= (const ScalarField &)=default
	Default copy assignment operator.

ScalarField &	operator= (ScalarField &&) noexcept=default
	Default move assignment operator.

Public Member Functions inherited from CubbyFlow::Field< N >
	Field ()=default
	Default constructor.

virtual	~Field ()=default
	Default virtual destructor.

	Field (const Field &)=default
	Default copy constructor.

	Field (Field &&) noexcept=default
	Default move constructor.

Field &	operator= (const Field &)=default
	Default copy assignment operator.

Field &	operator= (Field &&) noexcept=default
	Default move assignment operator.

Public Member Functions inherited from CubbyFlow::Grid< N >
	Grid ()=default
	Constructs an empty grid.

	~Grid () override=default
	Default virtual destructor.

	Grid (const Grid &other)
	Copy constructor.

	Grid (Grid &&other) noexcept
	Move constructor.

Grid &	operator= (const Grid &other)
	Copy assignment operator.

Grid &	operator= (Grid &&other) noexcept
	Move assignment operator.

virtual std::string	TypeName () const =0
	Returns the type name of derived grid.

const Vector< size_t, N > &	Resolution () const
	Returns the grid resolution.

const Vector< double, N > &	Origin () const
	Returns the grid origin.

const Vector< double, N > &	GridSpacing () const
	Returns the grid spacing.

const BoundingBox< double, N > &	GetBoundingBox () const
	Returns the bounding box of the grid.

GridDataPositionFunc< N >	CellCenterPosition () const
	Returns the function that maps grid index to the cell-center position.

void	ForEachCellIndex (const std::function< void(const Vector< size_t, N > &)> &func) const
	Invokes the given function `func` for each grid cell.

template<size_t M = N>
std::enable_if_t< M==2, void >	ForEachCellIndex (const std::function< void(size_t, size_t)> &func) const

template<size_t M = N>
std::enable_if_t< M==3, void >	ForEachCellIndex (const std::function< void(size_t, size_t, size_t)> &func) const

void	ParallelForEachCellIndex (const std::function< void(const Vector< size_t, N > &)> &func) const
	Invokes the given function `func` for each grid cell in parallel.

template<size_t M = N>
std::enable_if_t< M==2, void >	ParallelForEachCellIndex (const std::function< void(size_t, size_t)> &func) const

template<size_t M = N>
std::enable_if_t< M==3, void >	ParallelForEachCellIndex (const std::function< void(size_t, size_t, size_t)> &func) const

bool	HasSameShape (const Grid &other) const
	Returns true if resolution, grid-spacing and origin are same.

Public Member Functions inherited from CubbyFlow::Serializable
	Serializable ()=default
	Default constructor.

	Serializable (const Serializable &)=default
	Default copy constructor.

	Serializable (Serializable &&) noexcept=default
	Default move constructor.

virtual	~Serializable ()=default
	Default virtual destructor.

Serializable &	operator= (const Serializable &)=default
	Default copy assignment operator.

Serializable &	operator= (Serializable &&) noexcept=default
	Default move assignment operator.

Static Public Member Functions
static Builder	GetBuilder ()
	Returns builder fox VertexCenteredScalarGrid<N>.

Additional Inherited Members
Public Types inherited from CubbyFlow::ScalarGrid< N >
using	ScalarDataView = ArrayView< double, N >
	Read-write array view type.

using	ConstScalarDataView = ArrayView< const double, N >
	Read-only array view type.

Protected Member Functions inherited from CubbyFlow::ScalarGrid< N >
void	SwapScalarGrid (ScalarGrid *other)
	Swaps the data storage and predefined samplers with given grid.

void	SetScalarGrid (const ScalarGrid &other)
	Sets the data storage and predefined samplers with given grid.

void	GetData (Array1< double > &data) const override
	Fetches the data into a continuous linear array.

void	SetData (const ConstArrayView1< double > &data) override
	Sets the data from a continuous linear array.

Protected Member Functions inherited from CubbyFlow::Grid< N >
void	SetSizeParameters (const Vector< size_t, N > &resolution, const Vector< double, N > &gridSpacing, const Vector< double, N > &origin)

void	SwapGrid (Grid *other)
	Swaps the size parameters with given grid `other`.

void	SetGrid (const Grid &other)
	Sets the size parameters with given grid `other`.

Detailed Description

template<size_t N>
class CubbyFlow::VertexCenteredScalarGrid< N >

N-D Vertex-centered scalar grid structure.

This class represents N-D vertex-centered scalar grid which extends ScalarGrid. As its name suggests, the class defines the data point at the grid vertices (corners). Thus, A x B x ... grid resolution will have (A+1) x (B+1) x ... data points.

Constructor & Destructor Documentation

◆ VertexCenteredScalarGrid() [1/4]

template<size_t N>

CubbyFlow::VertexCenteredScalarGrid< N >::VertexCenteredScalarGrid ( )

default

Constructs zero-sized grid.

◆ VertexCenteredScalarGrid() [2/4]

template<size_t N>

CubbyFlow::VertexCenteredScalarGrid< N >::VertexCenteredScalarGrid	(	const Vector< size_t, N > &	resolution,
		const Vector< double, N > &	gridSpacing = `Vector< double, N >::MakeConstant(1)`,
		const Vector< double, N > &	origin = `Vector< double, N >{}`,
		double	initialValue = `0.0`
	)

Constructs a grid with given resolution, grid spacing, origin and initial value.

◆ ~VertexCenteredScalarGrid()

template<size_t N>

CubbyFlow::VertexCenteredScalarGrid< N >::~VertexCenteredScalarGrid ( )

overridedefault

Default virtual destructor.

◆ VertexCenteredScalarGrid() [3/4]

template<size_t N>

CubbyFlow::VertexCenteredScalarGrid< N >::VertexCenteredScalarGrid ( const VertexCenteredScalarGrid< N > & other )

Copy constructor.

◆ VertexCenteredScalarGrid() [4/4]

template<size_t N>

CubbyFlow::VertexCenteredScalarGrid< N >::VertexCenteredScalarGrid ( VertexCenteredScalarGrid< N > && other )

noexcept

Move constructor.

Member Function Documentation

◆ Clone()

template<size_t N>

std::shared_ptr< ScalarGrid< N > > CubbyFlow::VertexCenteredScalarGrid< N >::Clone ( ) const

overridevirtual

Returns the copy of the grid instance.

Implements CubbyFlow::ScalarGrid< N >.

◆ DataOrigin()

template<size_t N>

Vector< double, N > CubbyFlow::VertexCenteredScalarGrid< N >::DataOrigin ( ) const

overridevirtual

Returns data position for the grid point at (0, 0, ...). Note that this is different from origin() since origin() returns the lower corner point of the bounding box.

Implements CubbyFlow::ScalarGrid< N >.

◆ DataSize()

template<size_t N>

Vector< size_t, N > CubbyFlow::VertexCenteredScalarGrid< N >::DataSize ( ) const

overridevirtual

Returns the actual data point size.

Implements CubbyFlow::ScalarGrid< N >.

◆ GetBuilder()

template<size_t N>

static Builder CubbyFlow::VertexCenteredScalarGrid< N >::GetBuilder ( )

static

Returns builder fox VertexCenteredScalarGrid<N>.

◆ operator=() [1/2]

template<size_t N>

VertexCenteredScalarGrid< N > & CubbyFlow::VertexCenteredScalarGrid< N >::operator= ( const VertexCenteredScalarGrid< N > & other )

Copy assignment operator.

◆ operator=() [2/2]

template<size_t N>

VertexCenteredScalarGrid< N > & CubbyFlow::VertexCenteredScalarGrid< N >::operator= ( VertexCenteredScalarGrid< N > && other )

noexcept

Move assignment operator.

◆ Set()

template<size_t N>

void CubbyFlow::VertexCenteredScalarGrid< N >::Set ( const VertexCenteredScalarGrid< N > & other )

Sets the contents with the given other grid.

◆ Swap()

template<size_t N>

void CubbyFlow::VertexCenteredScalarGrid< N >::Swap ( Grid< N > * other )

overridevirtual

Swaps the contents with the given other grid.

This function swaps the contents of the grid instance with the given grid object other only if other has the same type with this grid.

Implements CubbyFlow::Grid< N >.

The documentation for this class was generated from the following file:

Core/Grid/VertexCenteredScalarGrid.hpp

Classes

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ VertexCenteredScalarGrid() [1/4]

◆ VertexCenteredScalarGrid() [2/4]

◆ ~VertexCenteredScalarGrid()

◆ VertexCenteredScalarGrid() [3/4]

◆ VertexCenteredScalarGrid() [4/4]

Member Function Documentation

◆ Clone()

◆ DataOrigin()

◆ DataSize()

◆ GetBuilder()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ Set()

◆ Swap()
